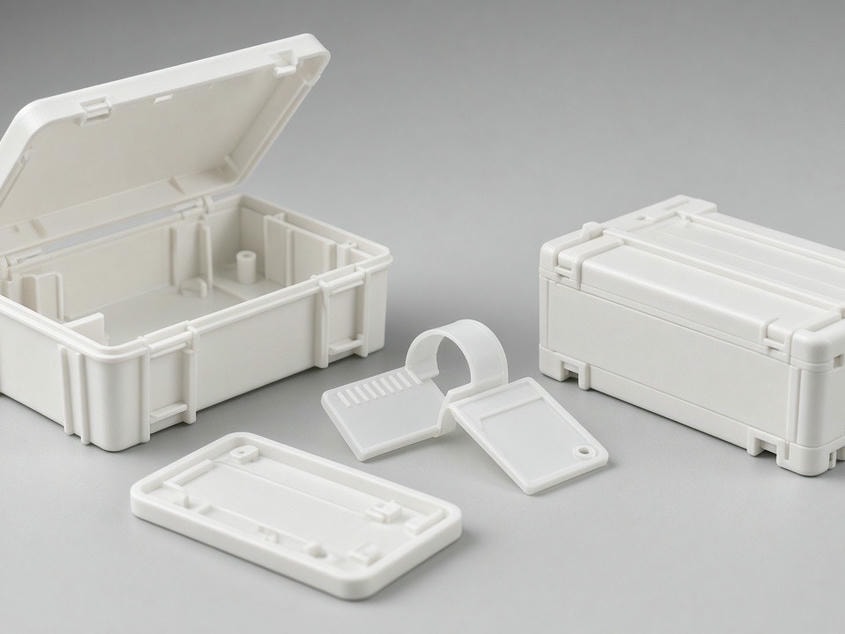

Custom PP Injection Molding Services
Polypropylene (PP) balances structural integrity, chemical resistance, and cost-effectiveness. PPMolding transforms your design requirements into stable, production-ready PP components for consumer goods, industrial housings, and automotive applications.
- ✓Lightweighting from 0.90 g/cm³ material density
- ✓Reliable in moisture, oils, acids, bases, and solvents
- ✓Proven living-hinge and snap-fit durability
0.90 g/cm³
Low density · ideal for lightweight parts
0.90g/cm³
Material density for lightweight parts
1,000T
Maximum machine tonnage
±0.05mm
Standard molding tolerance
2.5%
Max mold shrinkage, managed via DFM
Material Advantages
Why Choose Polypropylene for Your Project
PP is favored by engineers for its high strength-to-weight ratio and excellent fatigue resistance. As a semi-crystalline polymer, it is the natural choice for parts requiring living hinges, snap-fit assembly, or dependable service in harsh chemical environments.
Cost Efficiency
One of the most economical engineering plastics, directly reducing your per-part manufacturing costs.
Chemical Stability
Performs reliably in environments exposed to moisture, oils, and a wide range of solvents.
Design Flexibility
Easy to process, allowing complex geometries and consistent wall thickness control.
Weight Reduction
Low density makes PP the primary choice for lightweighting in automotive and portable device applications.
Material Data
Polypropylene Material Characteristics
Understanding how PP behaves during the injection molding process is key to achieving consistent part quality. We work with various PP grades to ensure your part meets specific functional requirements, from rigid housings to flexible snap features.
Shrinkage behavior is the most critical variable: our engineers account for it in tool design so your parts hold dimension across the full production run.
Discuss material selection| Property | Typical Value / Characteristic |
|---|---|
| Density | 0.90 – 0.91 g/cm³ |
| Heat Deflection Temp | 80°C – 120°C (depending on grade) |
| Chemical Resistance | Excellent against acids, bases, and solvents |
| Mold Shrinkage | 1.0% – 2.5% |
| Common Applications | Containers, automotive clips, living hinges, industrial housings |
Typical values for unfilled PP grades; final material selection is confirmed during engineering evaluation.
Manufacturing
Precision Manufacturing Capabilities
Our production environment is equipped to manage the specific shrinkage and cooling requirements of PP. We control the molding process to prevent warping and ensure structural uniformity — even in high-cavity production runs.
Talk to Our Engineering Team- Machine Tonnage
- 50 – 1,000 Tons
- Tolerance
- Standard ±0.05 mm
- Tooling Options
- Prototype, Multi-cavity, Hot/Cold Runner
- Surface Finish
- SPI, Texture, Matte, or Polished
- Secondary Services
- Assembly, Ultrasonic Welding, Pad Printing
Engineering Support
From Design Verification to Volume Production
We assist engineering teams in optimizing PP part designs for manufacturability (DFM). By analyzing gate locations, wall thickness, and rib placement early in the process, we help you avoid common molding defects such as sink marks or incomplete filling.
Design Review
Our team evaluates your STEP or IGES files to ensure optimal draft angles and cooling rates for PP.
Tooling Development
We manufacture custom molds using P20, 718, or H13 steel, depending on your anticipated production volume.
Process Stability
We monitor injection pressure, melt temperature, and cooling cycles to maintain consistent part quality across thousands of units.
Secondary Operations
Threaded insert installation, painting, and assembly deliver a finished component ready for your supply chain.
How We Work
Streamlined Project Workflow
We prioritize clear communication and predictable delivery schedules to keep your project on track.
-
1
RFQ & Drawing Submission
Send your 3D files and material requirements via the inquiry form below.
-
2
Engineering Evaluation
We verify design feasibility and provide a tailored manufacturing proposal.
-
3
Tooling & Trial
We build the mold and provide T1 samples for your approval.
-
4
Production & Quality Control
Once approved, we move to volume production with rigorous QC inspections.
-
5
Delivery
Finished parts are securely packed and shipped to your location.
Get Started
Start Your PP Molding Project
Ready to move from design to production? PPMolding provides the technical support and manufacturing capacity to handle your custom plastic injection molding needs. Send your 3D files and project requirements today for a prompt manufacturing proposal.
